Innovative Designs. Elevated Productivity.

“ALUCOBOND® EasyFix™ is a cost-effective installation method for wood-frame construction in multifamily and mixed-use sectors.”

Utilizing a proprietary design for the attachment of ALUCOBOND PLUS panels, ALUCOBOND EasyFix offers simplicity and efficiency in meeting tight construction schedules. Trend-forward color options along with customizable panel layouts, widths and lengths allow for freedom in design.

ALUCOBOND’s 50-year history of proven performance provides the architectural community:

  • Long-term value
  • Best-in-class durability
  • Confidence in fire safety standards set by the International Building Code (IBC)
  • 100% recyclable material
  • LEED contribution
  • Zero VOC’s on-site

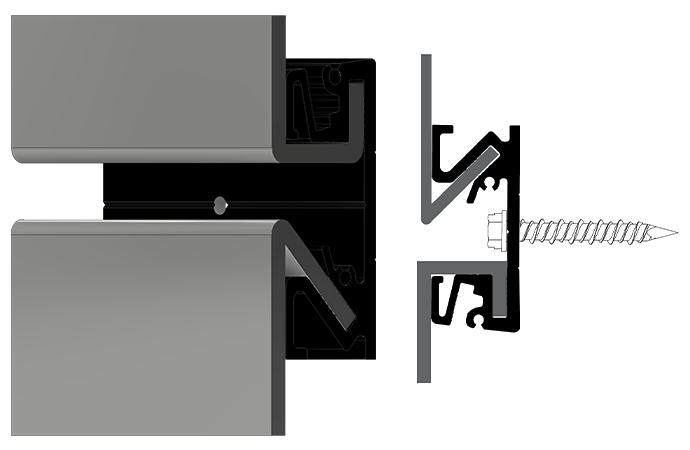

The Concept

Concept-Image

ALUCOBOND EasyFix is a simple installation method utilizing a proprietary design for attachment of ALUCOBOND PLUS panels. The design provides an aesthetic solution similar to traditional ACM systems, combining 2 types of folds.

ALUCOBOND EasyFix must be installed with ALUCOBOND PLUS 4mm aluminum composite material and ALUCOBOND EasyFix clips or rails. Using the available attachment system, simply insert the panels with short clips or with a continuous rail.

Introducing ALUCOBOND EasyFix

COLORS & FINISHES

minimal-fabrication
Minimal Fabricaton

ALUCOBOND EasyFix is quickly fabricated off-site by a trained and qualified fabricator. A V-groove is routed out of the panel to allow for an easy fold and smooth edge finish.

route-and-return
Route and Return

Attachment system provides the aesthetic of traditional aluminum composite material (ACM).

customization
Customization

Trend-forward color options along with customizable panel layouts, widths and lengths allow for freedom in design.

safety
Safety

ALUCOBOND PLUS ACM is manufactured with a fire retardant core meeting the IBC and NBC requirements for composite panels.

ease-and-speed-of-installation
Ease & Speed of Installation

Ships flat to the job site for easy handling. Installation is made simple with a variety of fastening options.

supply-chain-and-logistics
Supply Chain & Logistics

Readily available attachment system, and 89 stock colors of ALUCOBOND PLUS.

warranty
Warranty

All colors and finishes come with a leading industry Warranty. Additionally, ALUCOBOND meets AAMA 2604 and 2605.

sustainability
Sustainability

ALUCOBOND EasyFix utilizes less aluminum than typical ACM systems and reduces fabrication waste.

Technical-Data-Table


Max Width

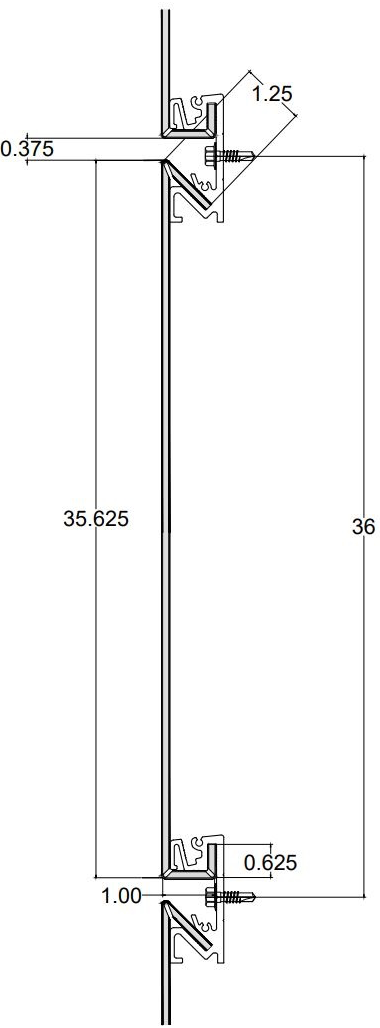

ALUCOBOND EasyFix has a max system width of 36" on center of the screws. 3A Composites recommends standardization of widths in each project (eg. 36", 27", 18", or 17"). Consistent widths will reduce fabrication time and install complexity.

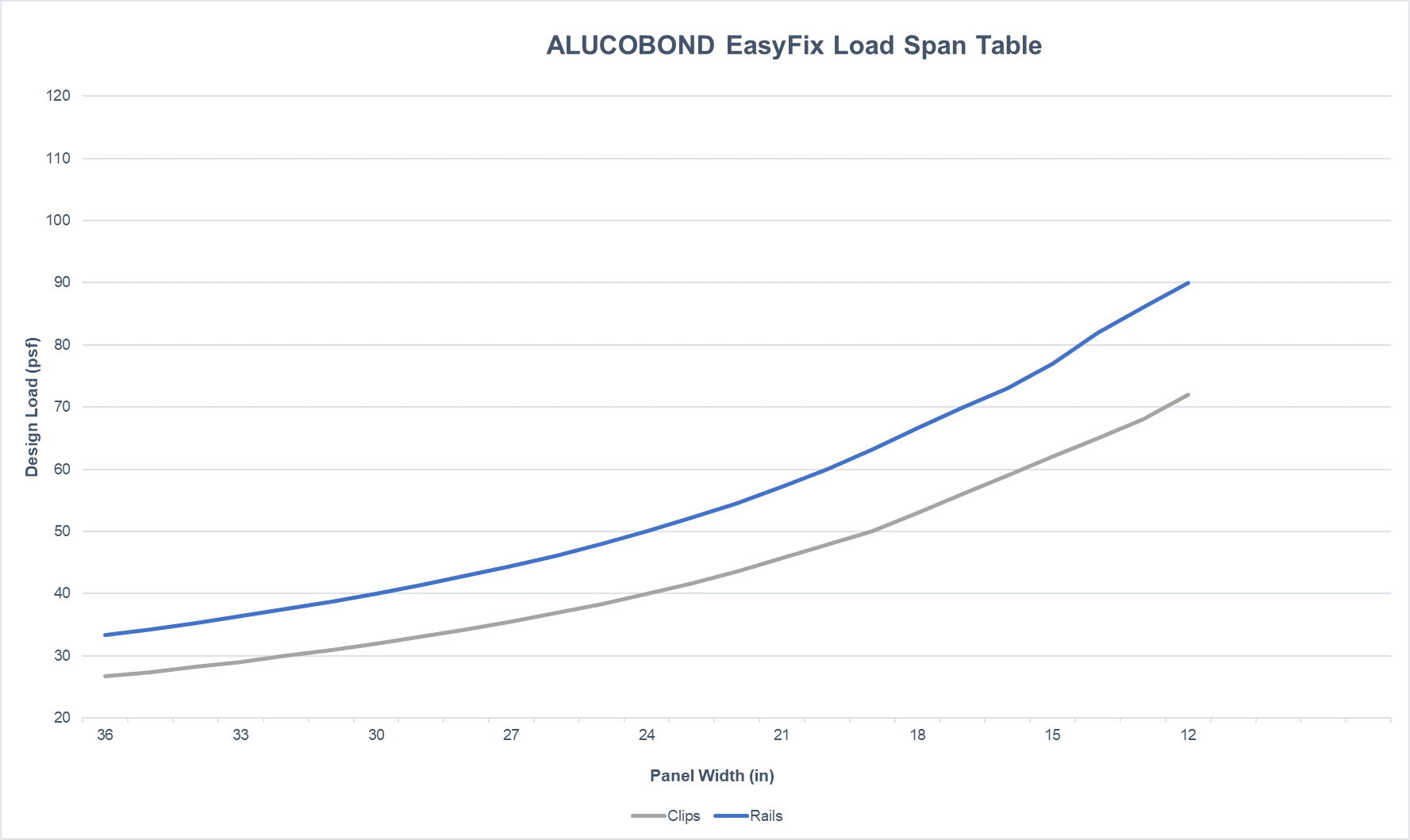

Load-Span-Table
Technical-Data-Image

Downloads
