Seven Clans Casino Red Lake

Alucobond Spectra, Seven Clans Casino Red Lake by DSGW Architects

Project Name: Seven Clans Casino Red Lake
Project Location: Red Lake, Minnesota
Alucobond Materials: 3,250sq ft 4mm Spectra Ocean
Year of Installation: 2009
Architect: DSGW Architects, Duluth, Minnesota
Fabricator: Atomic Architectural Sheet Metal, Inc.
Vadnais Heights, Minnesota
General Contractor/Installer: Woodstone Builders, Inc.

Architectural design of the newly opened Seven Clans Casinos Red Lake followed the wishes of community elders of the Red Lake Band of Chippewa Indians who own and operate this casino-hotel complex located  in north-central Minnesota on the reservation’s southern edge.  They wanted the facility’s design to respect tribal heritage but also to exude an atmosphere of fun and relaxation.

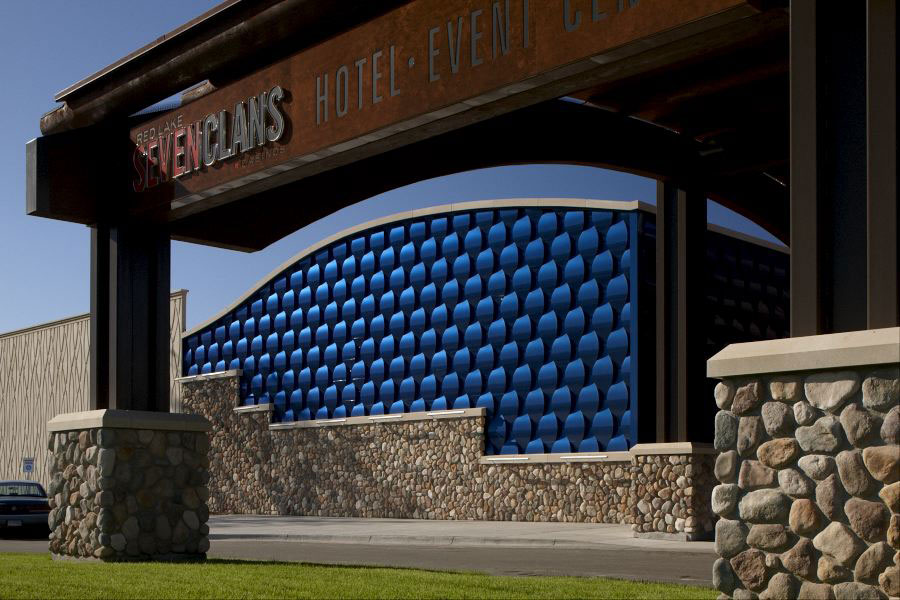

DSGW Architects, of Duluth, Minn., accomplished both goals by designing the overall casino complex to resemble a traditional tribal “longhouse” – or gathering place – while incorporating contemporary building materials such as Alucobond® aluminum composite material (ACM) and a sophisticated color-changing LED exterior lighting system.

Alucobond Spectra, Seven Clans Casino Red Lake by DSGW Architects

“They wanted to create a first-class facility that had a north woods flavor with contemporary elements in order to improve their gaming image,” according to Erik C. Wedge, AIA, NCARB, LEED AP, partner, DSGW Architects, who said the new casino was designed to replace the gaming facility that had been incorporated into the Red Lake Humanities Center.

The $21-million 65,840 square-foot Seven Clans Casinos Red Lake complex was designed to celebrate the area’s woodlands culture in which the lake itself plays a major role.  So, not only did Wedge incorporate wood and stone in the building design but rippling images of the shimmering blue lake.

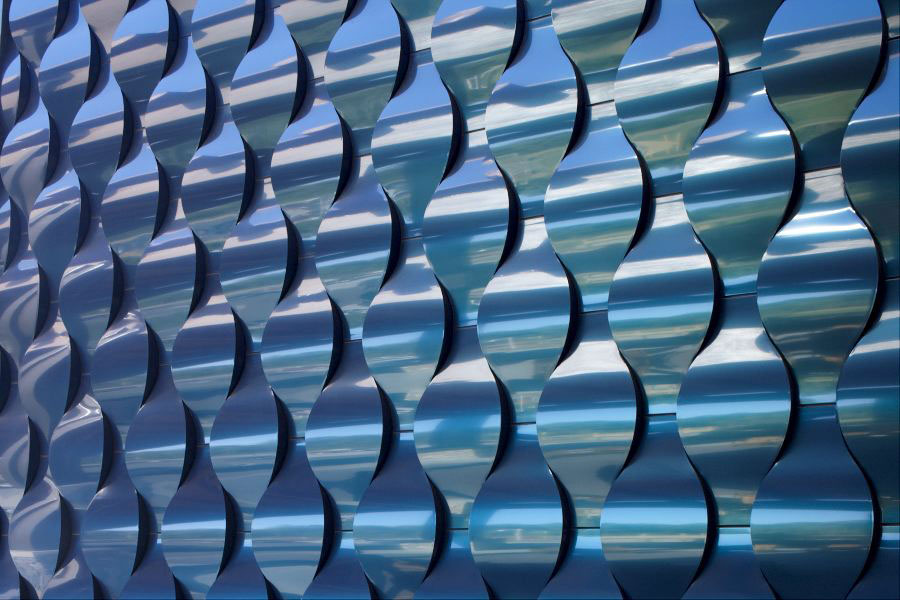

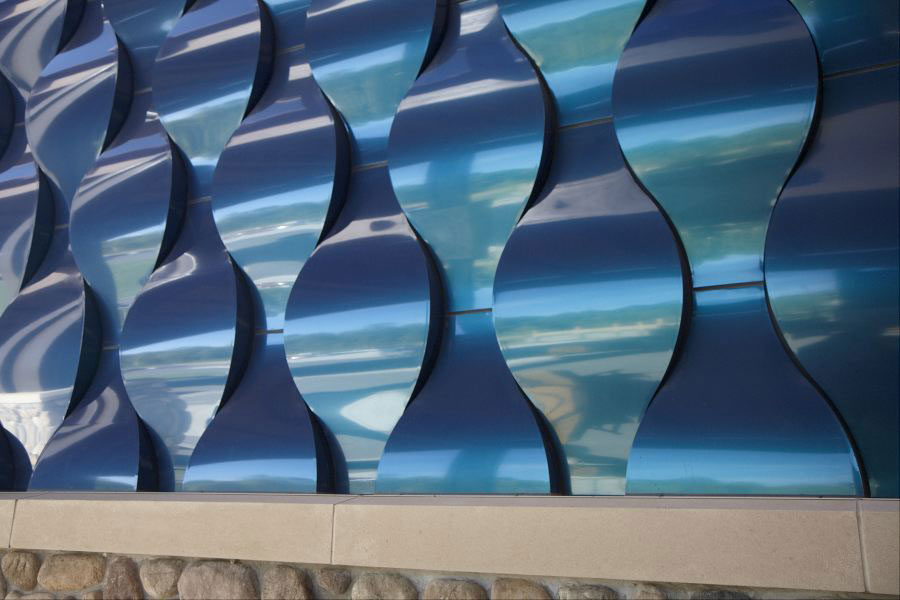

“Red Lake is very culturally important to the heritage of the Red Lake Nation,” said Wedge, who recreated the water effect in exterior cladding with an intricate pattern of hourglass shapes formed with Alucobond ACM in the Spectra Ocean color. A total of 3,250 square feet of Alucobond Spectra Ocean in the 4mm thickness was installed at Seven Clans Casino Red Lake.

Alucobond Spectra, Seven Clans Casino Red Lake by DSGW Architects

Alucobond Spectra Colors – a new color finishing system for Alucobond – allow architects to incorporate a unique, ever-changing color spectrum in the cladding of sophisticated building designs.  Alucobond Spectra Colors change colors as different wavelengths of light are reflected back to the audience, depending upon the viewing angle.

“The Alucobond Spectra is a very eye-catching material that could be shaped into a form that appears to undulate,” said Wedge.  “Different colors are viewed from different angles.  The color scheme ranges from blue to green.  It really does seem to shimmer like the lake.  We couldn’t have gotten this effect from any other product on the market. We wanted to recreate the shimmer of the lake on a bright, sunny day.”
At night, the Spectra Ocean exterior panels produce a unique, eye-catching effect when bathed in a state-of-the-art LED lighting system that changes colors.

“We’ve been getting a lot of positive comments,” said Raymond J. Brenny, chief operating officer, Red Lake Gaming. “It’s pulling people in from the highway.”(Seven Clans Casinos Red Lake is located 25 miles north of Bemidji on Minnesota Highway 89.)

Alucobond Spectra, Seven Clans Casino Red Lake by DSGW Architects

“With the material’s reflective qualities and the design of the panels, you get the impression of the moon shimmering off of the lake at night,” said Brenny.  “There’s no other casino or business in this area like it. The Alucobond is well-made and the installation looks outstanding. The wave pattern creates a very unique appearance.”

The lake theme was carried inside the complex with Alucobond Spectra Ocean ACM installed in decorative interior elements. Two Spectra Ocean panels were positioned behind the lobby check-in desk; and, a series of doubled-sided curved Spectra Ocean panels were installed within a grand wooden canopy positioned over the facility’s gift shop.

“There’s a progression with the material,” said Wedge.  “When visitors are on Highway 89, they see the Alucobond.  It gives them a transition from outside to inside.  The Alucobond serves as an exterior focal point.  In the lobby, it’s a focal point behind the hotel desk and above the gift shop.  There’s one consistent material – the Alucobond.  It draws the eye to it.”

Alucobond Spectra, Seven Clans Casino Red Lake by DSGW Architects

Atomic Architectural Sheet Metal, Inc., of Vadnais Heights, Minn., both fabricated the Alucobond Spectra material and installed it in a route and return wet-seal method.

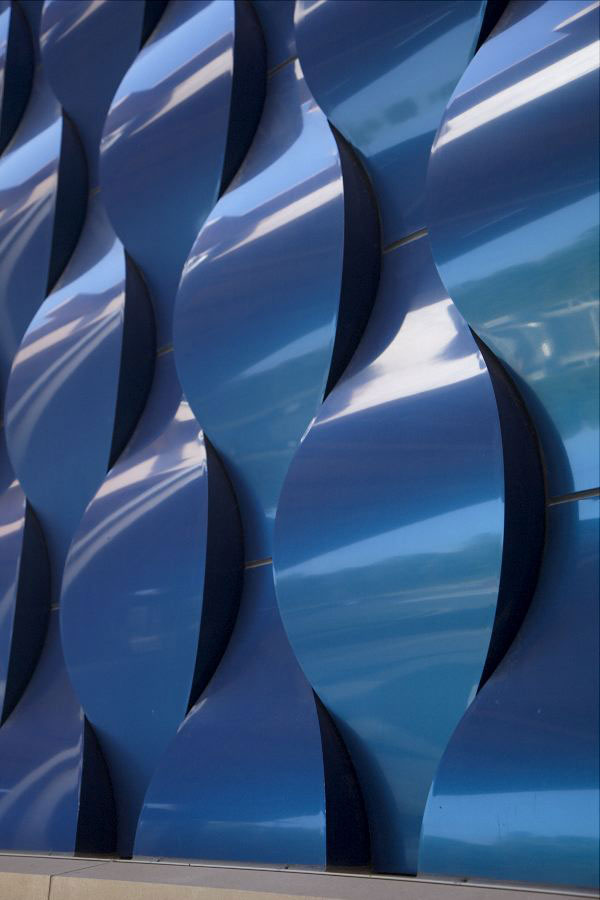

Fabricating the Alucobond exterior panels into the compound radius hourglass shapes required a multi-step process, according to Russ Schmitz, Atomic vice president of sales.

“The face of these panels has a compound radius as well as the sides; we heat welded-them together,” said Schmitz. “An aluminum attachment system was fastened to the panels so we could create a running bond-type pattern.”
The new Seven Clans Casinos Red Lake complex – which includes a 40-room hotel, gift shop, two restaurants and a conference center – celebrated a soft opening Dec. 23, 2009, with its grand opening in January. The gaming hall features 310 slot machines, four black jack tables and two poker tables.

The Alucobond Spectra exterior cladding has held up well in the northern Minnesota winter, according to Wedge. “The Alucobond has performed very well,” said Wedge.  “It’s an extremely maintenance-free material.”

Adds Brenny: “There was no piling of snow on the Alucobond.  It didn’t freeze up or discolor. It looks as good as the day it was installed.”
The Alucobond material for this project was promoted by EBP, LLC, of Excelsior, Minn. General contractor for the casino complex was Woodstone Builders, Inc., of  Minneapolis.

This entry was posted in Case Histories. Bookmark the permalink. Follow any comments here with the RSS feed for this post.

Order Samples



Tags:


Post a comment or leave a trackback: Trackback URL.

5 Comments

  1. dan
    Posted July 30, 2014 at 3:05 pm | Permalink

    how are the panels formed/turned back?

    • Posted July 30, 2014 at 5:03 pm | Permalink

      Hello Dan, thanks for the comment. The panels are a rout and return with a heat weld at certain locations. If you have any further questions don’t hesitate to ask.

  2. Posted October 4, 2015 at 2:24 am | Permalink

    Sir I’m from India. Did u have any distributors in india.if please inform. Regards abinu

  3. C.J. Biggs
    Posted April 20, 2016 at 8:41 am | Permalink

    How are the panels attached to the building?
