Striking Ellipsoidal Design, Modern ALUCOBOND PLUS Façade Distinguish High-Rise Residential Tower

Adaire, Fairfax, Virginia, R2L Architects, LEED Gold, Custom Alucobond PLUS

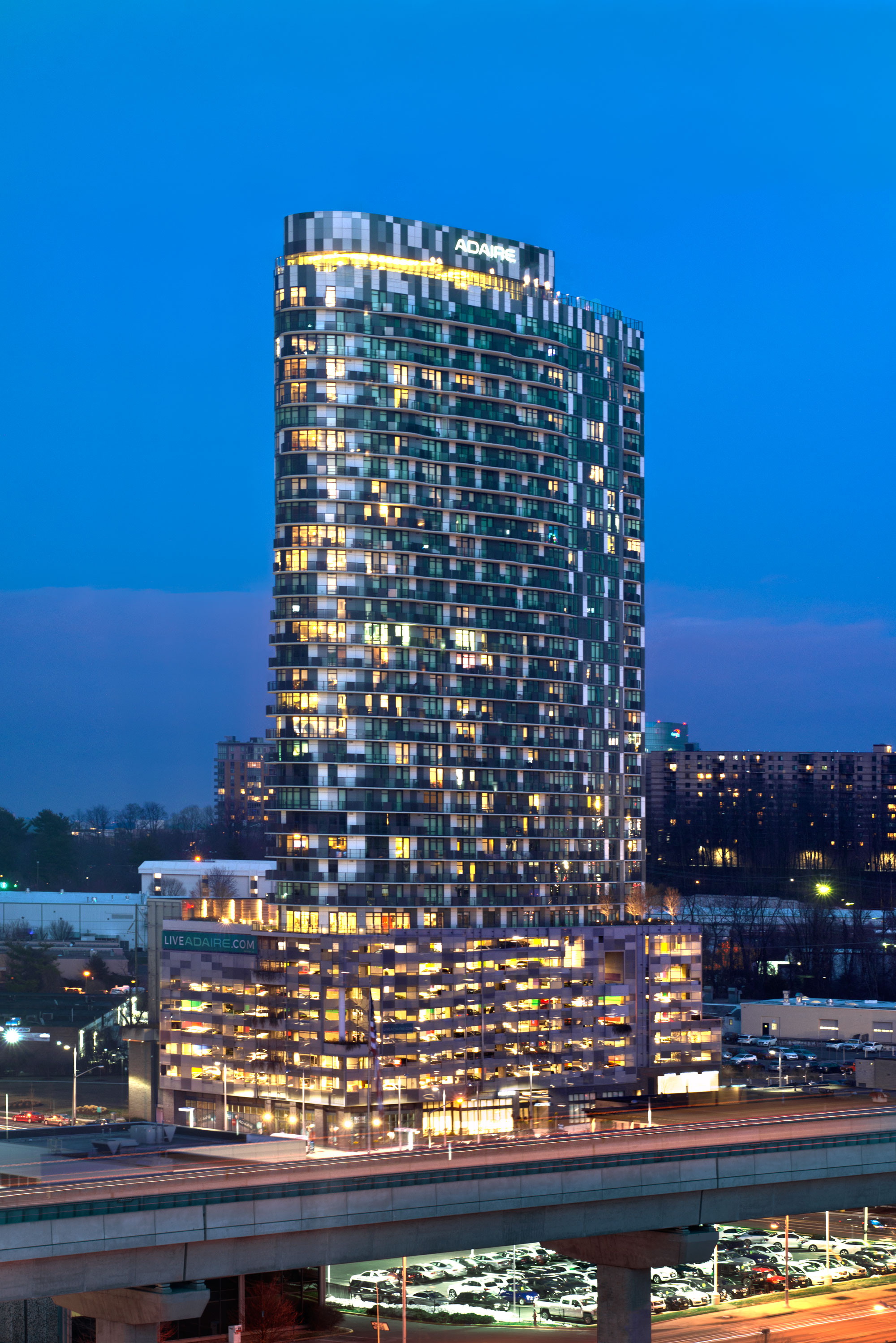

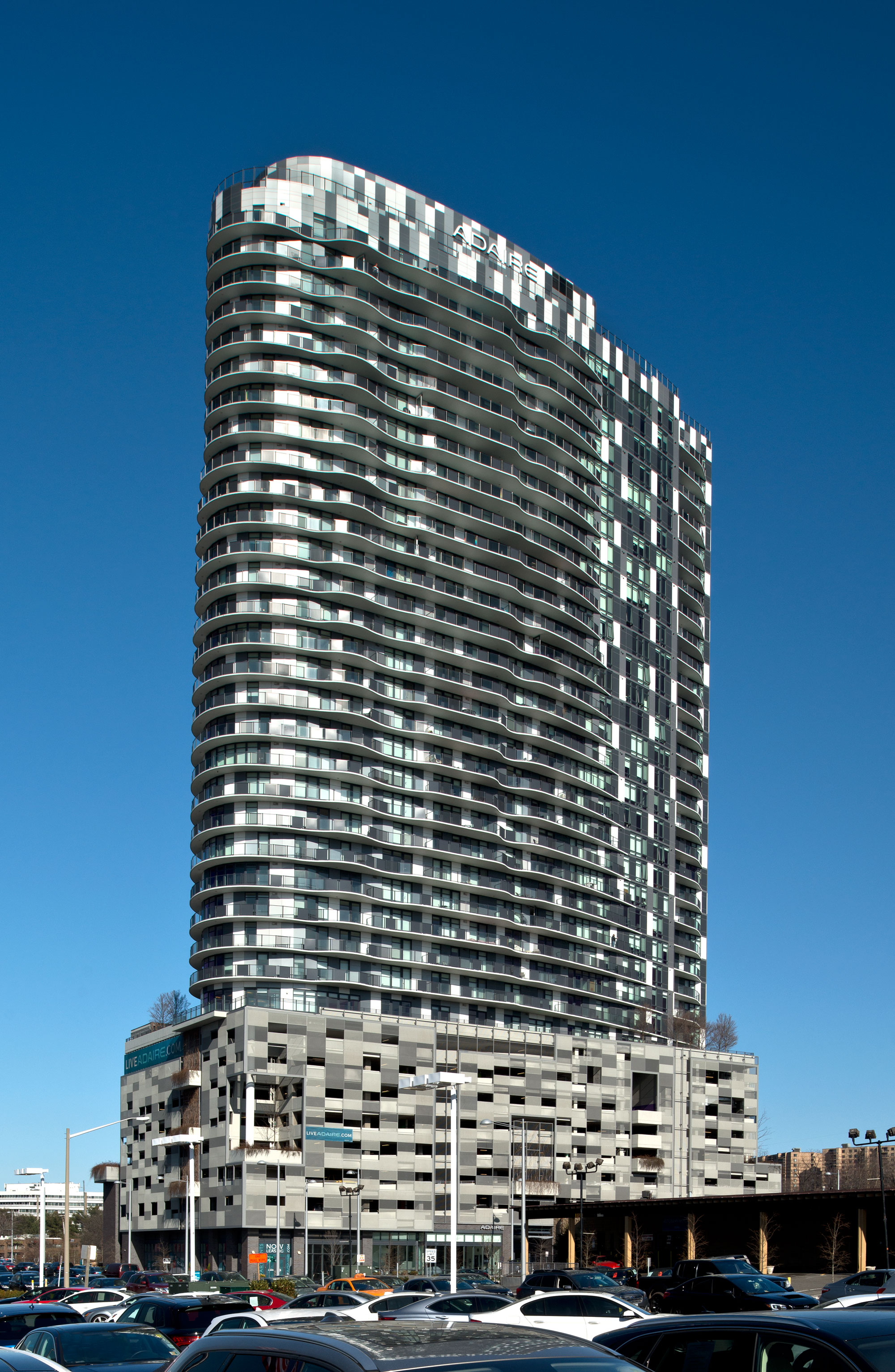

As one of the first high-rises constructed in the fast-growing Tysons unincorporated area of Fairfax County, Va., Adaire, a mixed-use residential community, stands out not only for its 35 stories towering into the sky but for its striking ellipsoidal design and modern facade.

Highlights

• The residential tower’s unique oval design is accentuated with sweeping white balconies and a modern façade of glass mixed with multiple custom colors of ALUCOBOND® PLUS installed in a random pattern.

Custom Walls & Windows, Inc., of Jessup, Md., fabricated and installed the ALUCOBOND PLUS panels with a male/female interlocking panel wet-seal system.

• The 600,000 square-foot community features a 400-unit residential tower over a rectangular retail-and-parking podium and includes 35 stories above grade and two below.

Project: Adaire Apartments, Fairfax County, VA

ALUCOBOND PLUS: Custom Liberty White, Custom MCH Gray Mic, Custom River Satin Nickel

Architects: R2L Architects, PLLC
Fabricator/Installer: Custom Walls & Windows

Fabricator: Custom Walls & Windows, Inc.

General Contractor: John Moriarty & Associates

LEED Certification: LEED GOLD

Images: Mark Kempf Photography


The Project

R2L: Architects, PLLC, of Washington, D.C., designed Adaire apartments as one of three towers.

“Normally, towers are L-shaped or C-shaped to create courtyards,” said Sacha Rosen, AIA, principal, R2L: Architects. “But, we had great view opportunities and we wanted residents to be able to see the mountains. The oval design makes it easier to see past other buildings. … Since Adaire was one of the first tall buildings in the neighborhood, we wanted to create a striking appearance that would look good from all directions. It’s also quite striking from the air; it’s visible from flights out of Dulles (International Airport).”

Adaire is located less than 20 miles from the District of Columbia – and within walking distance of the Spring Hill Metro station – and is 50 miles east of the Blue Ridge Mountains. The 600,000 square-foot community features a 400-unit residential tower over a rectangular retail-and-parking podium and includes 35 stories above grade and two below.

Adaire, Fairfax, Virginia, R2L Architects, LEED Gold, Custom Alucobond PLUS

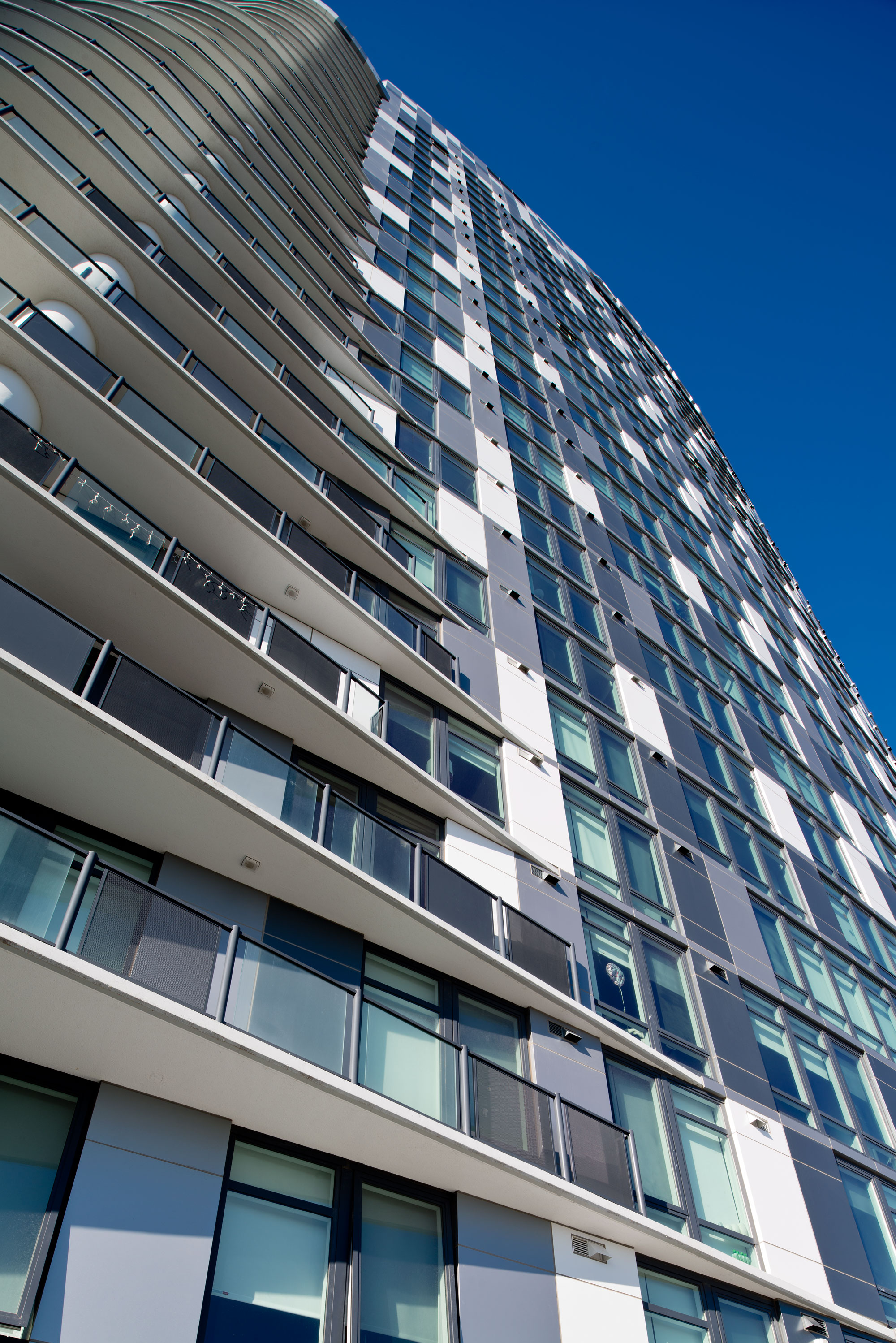

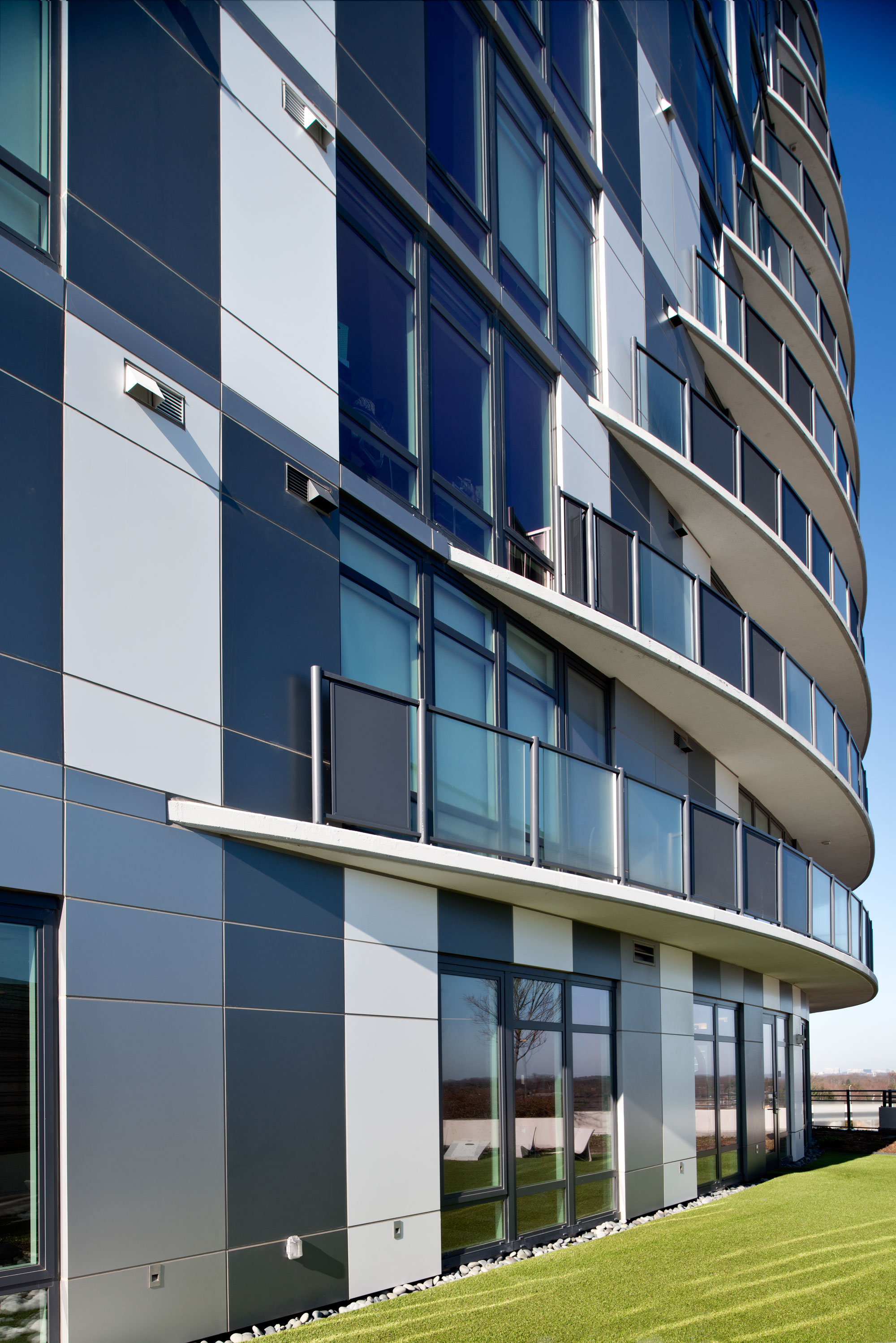

The residential tower’s unique oval design is accentuated with sweeping white balconies and a modern façade of glass mixed with multiple custom colors of Alucobond® PLUS aluminum composite material (ACM) by 3A Composites USA installed in a random pattern.

Adaire, Fairfax, Virginia, R2L Architects, LEED Gold, Custom Alucobond PLUS

A total of 113,160 square feet of 4mm ALUCOBOND PLUS clads Adaire, including: 32,134 square feet of Custom Liberty White, 37,538 square feet of Custom MCH Gray Mica and 43,488 square feet of Custom River Satin Nickel.

Since ALUCOBOND was introduced more than 40 years ago, architects have turned to this ingenious patented product to create some of the world’s most visually striking modern structures. Alucobond is specified by architects as high-tech metal cladding for buildings and is used to create custom design elements as well as corporate identity structures and signage.

(Alucobond PLUS consists of two sheets of 0.020” aluminum thermobonded to a proprietary fire-resistant (FR) core and is manufactured in a standard 4mm thickness. Alucobond PLUS provides extraordinary flatness and rigidity, excellent formability, low weight and outstanding weather resistance. Alucobond PLUS wall panels have a flame-spread index of less than 25 and a smoke-developed index of less than 450 when tested in accordance with ASTM E 84, and have a Class A interior finish classification.)

Adaire, Fairfax, Virginia, R2L Architects, LEED Gold, Custom Alucobond PLUS

Adaire residents’ scenic views are enhanced with floor-to-ceiling windows.

“The ownership group wanted a façade that would go well with the color of the glass, so we were careful to make the rest of the building work well with the glass,” according to Rosen, who said R2L: Architects worked with window manufacturer Peerless Products, Inc., of Fort Scott, Kan., to create a custom design with special mullions for the ellipsoidal residential tower. “The angles of the panels also were different. Digital printing was utilized to design the joints.”

Custom Walls & Windows, Inc., of Jessup, Md., fabricated and installed the Alucobond PLUS panels with a male/female interlocking panel wet-seal system.

John Moriarty & Associates of Virginia, LLC, based in Arlington, Va., served as general contractor for the project.

Adaire, Fairfax, Virginia, R2L Architects, LEED Gold, Custom Alucobond PLUS

Custom Walls & Windows worked in conjunction with Peerless Products during design development to create 42-inch façade modules that could easily incorporate changes, according to Alex Bennefield, vice president, Custom Walls & Windows.

Adaire, Fairfax, Virginia, R2L Architects, LEED Gold, Custom Alucobond PLUS

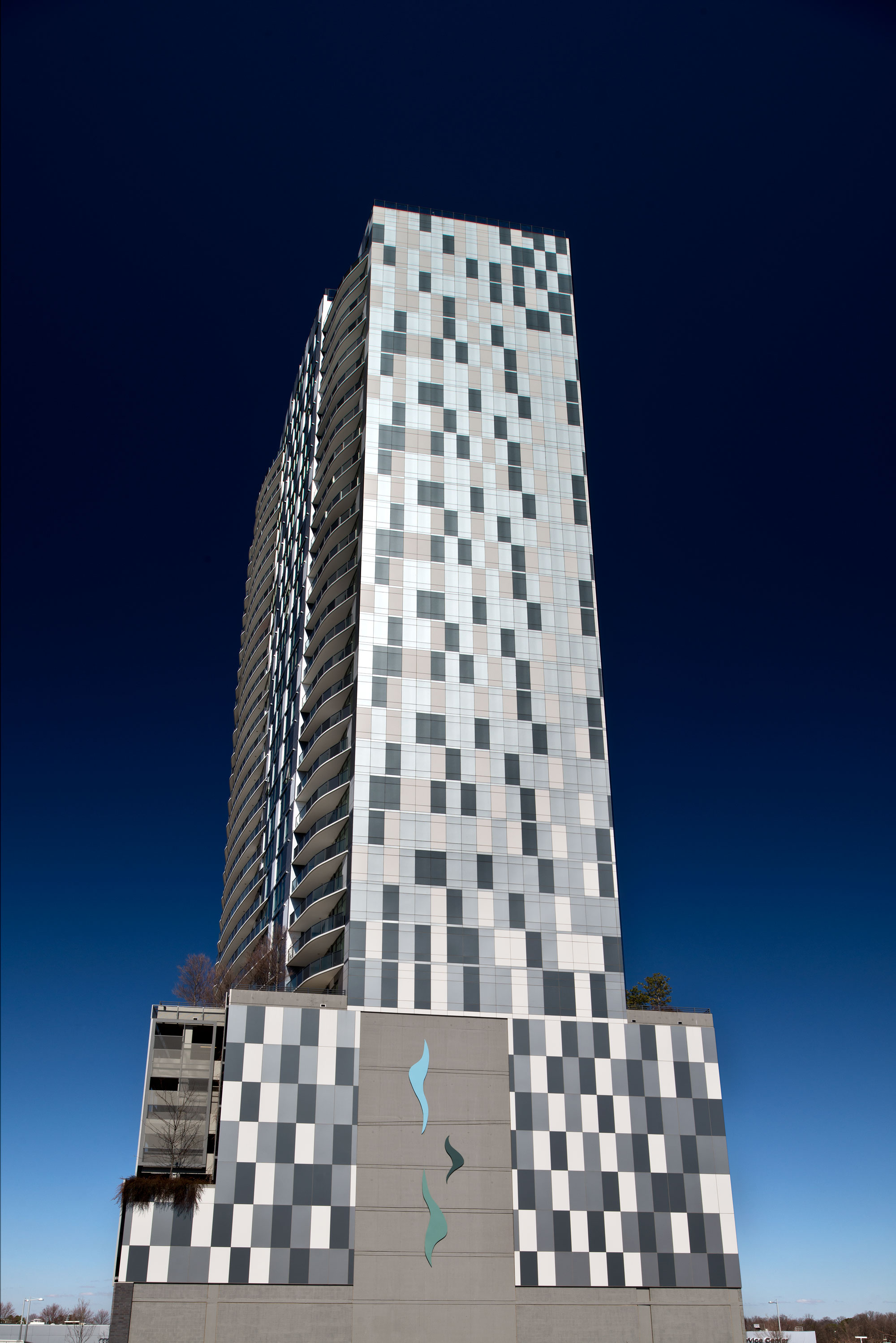

“The Alucobond panels were fabricated with more of an ellipse rather than a true radius,” said Bennefield. “They change a few degrees as they return back to the window. There are 10 different angles on the panels as you walk around the building. The east wall is a pure cladded wall.”

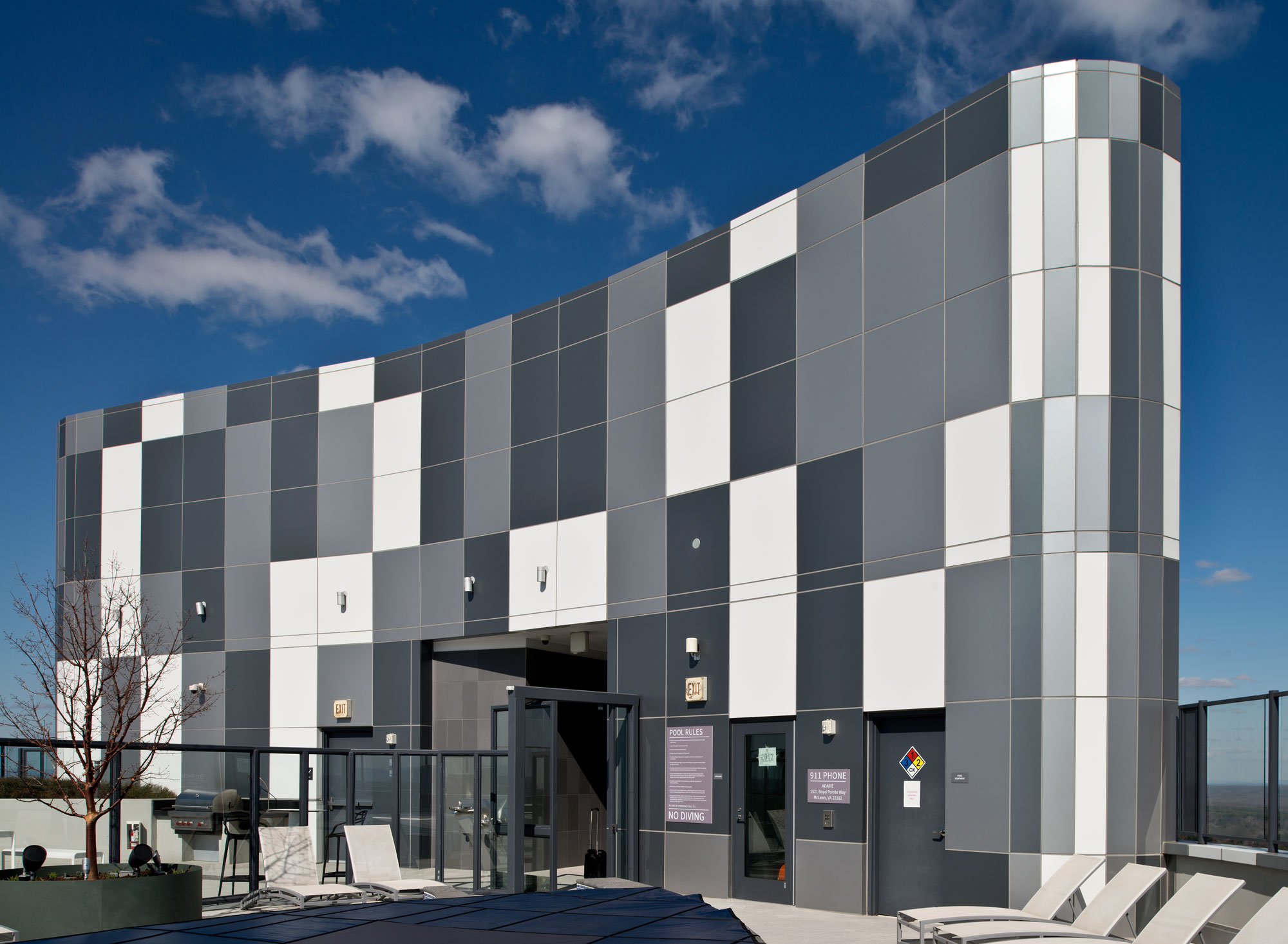

Custom Walls & Windows fabricated approximately 13,800 Alucobond PLUS panels, with the three custom colors installed in a random pattern on the eighth floor and above. Bennefield credits a good labeling system during panel fabrication and an excellent set of shop drawings for the nearly flawless panel installation in which only four panels needed to be moved to their designated locations.

Custom Walls & Windows focused on completing a speedy fabrication and installation of the Alucobond PLUS panels, beginning fabrication during the summer of 2015 and completing panel installation 11 months later. The first residents began moving into the Adaire apartments in June 2016.

Adaire, Fairfax, Virginia, R2L Architects, LEED Gold, Custom Alucobond PLUS

“As we were finishing the exterior, work was being completed on the interiors,” said Bennefied. “They were starting to move people into the lower floors when we were completing the exterior.”

While originally designed to achieve LEED Silver status, the Adaire was certified LEED Gold. Fully recyclable Alucobond PLUS contributes credits to LEED certification.

Adaire, Fairfax, Virginia, R2L Architects, LEED Gold, Custom Alucobond PLUS

“The Alucobond has been great,” said Rosen. “It offered a lot of flexibility in the design and it installed very well. All of the panels came in as expected. It’s also weathered really nicely. The area’s weather is tough; it can get very hot and very cold.”

Adaire, Fairfax, Virginia, R2L Architects, LEED Gold, Custom Alucobond PLUS

The Adaire multi-use residential community – which was approved by the Fairfax County Board of Supervisors – “has received accolades for both architectural and bird-friendly design, establishing high standards for future phases of the Spring Hill Station master plan,” according to an R2L: Architects’ statement.
